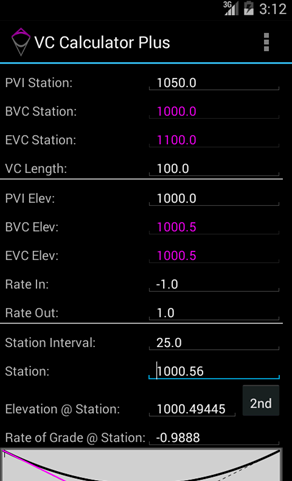

DEFINE VERTICAL CURVE

  • Enter any two station components of a vertical curve and the other two will be filled automatically

  • Enter any three vertical components of a vertical curve and the others will be filled automatically



STATION BUTTONS

Increment / Decrement station by the station interval.

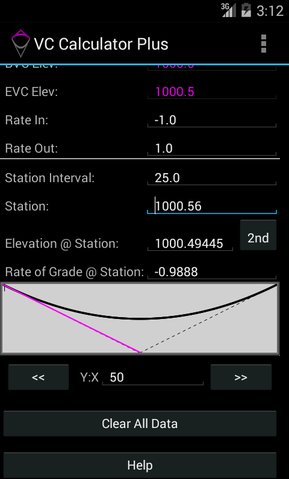

GRAPH WINDOW

Visual confirmation that data has been entered correctly.  Window may be scaled vertically as desired.

FEATURES



OUTPUT

Entering a value into any one of the three solutions fields (Station, Elevation, or Rate of Grade) will give solutions for the other two.  2nd button will toggle between possible double solutions for a given elevation along a vertical curve

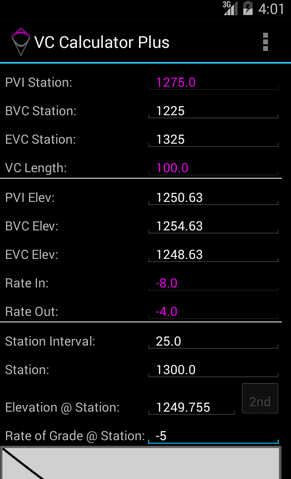

EXAMPLES



CIVIL-SURVEY applications
